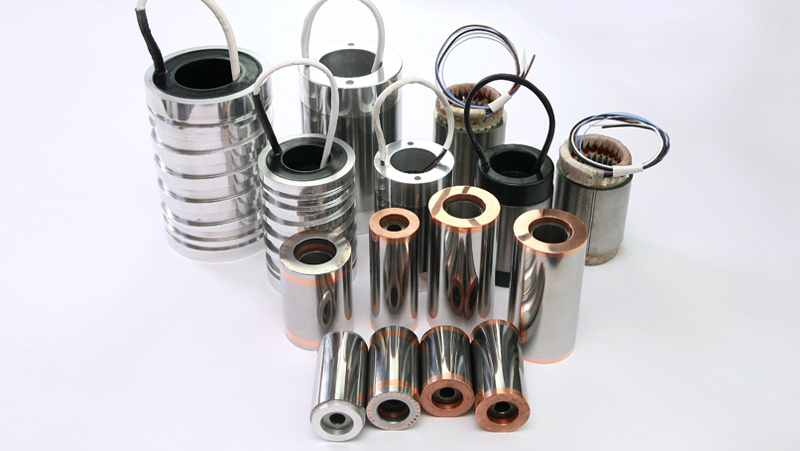

A2P-S48

product_inner02

Notes of Dimensions

product_inner02_

※모바일에서는 좌우로 드래그 하셔서 내용을 확인하실 수 있습니다.

A2P-S48
1. Outer dia. of the stator 48
2. Inner dia. of the stator 28
3. Laminated length of the stator 20~80
Front/Rear F R
4. Height of the end-winding Ld 10 12
Hd 12 14
5. Outer dia. of the rotor 27.6
6. Inner dia. of the rotor/max. CU 16/18
AL -
7. Width of the-ring 3

A2P-S48

※모바일에서는 좌우로 드래그 하셔서 내용을 확인하실 수 있습니다.

AL/HD V10
10krpm
167Hz		 V20
20krpm
333Hz		 V30
30krpm
500Hz		 V40
40krpm
667Hz		 V50
50krpm
833Hz		 V60
60krpm
1000Hz		 V70
70krpm
1167Hz		 V80
80krpm
1333Hz		 V90
90krpm
1500Hz		 Speed
L20 (20mm) 0.05 0.17 0.33 0.5 0.6 0.7 0.8 0.9 1.0 Power[kW]
L30 (30mm) 0.11 0.30 0.50 0.7 0.9 1.1 1.2 1.4 1.5
L40 (40mm) 0.16 0.41 0.70 1.0 1.2 1.5 1.7 1.9 2.1
L50 (50mm) 0.22 0.55 0.95 1.3 1.6 1.9 2.3 2.6 2.8
L60 (60mm) 0.31 0.79 1.3 1.7 2.1 2.5 2.8 3.2 3.4
L70 (70mm) 0.38 1.00 1.6 2.1 2.5 3.0 3.4 3.8 4.1
L80 (80mm) 0.45 1.20 2.0 2.6 3.1 3.5 3.9 4.4 4.7
length Power [kW]

※모바일에서는 좌우로 드래그 하셔서 내용을 확인하실 수 있습니다.

CU/HD V10
10krpm
167Hz		 V20
20krpm
333Hz		 V30
30krpm
500Hz		 V40
40krpm
667Hz		 V50
50krpm
833Hz		 V60
60krpm
1000Hz		 V70
70krpm
1167Hz		 V80
80krpm
1333Hz		 V90
90krpm
1500Hz		 Speed
L20 (20mm) 0.05 0.17 0.33 0.5 0.6 0.7 0.8 0.9 1.0 Power[kW]
L30 (30mm) 0.11 0.30 0.50 0.7 0.9 1.1 1.2 1.4 1.5
L40 (40mm) 0.16 0.41 0.70 1.0 1.2 1.5 1.7 1.9 2.1
L50 (50mm) 0.22 0.55 0.95 1.3 1.6 1.9 2.3 2.6 2.8
L60 (60mm) 0.31 0.79 1.3 1.7 2.1 2.5 2.8 3.2 3.4
L70 (70mm) 0.38 1.00 1.6 2.1 2.5 3.0 3.4 3.8 4.1
L80 (80mm) 0.45 1.20 2.0 2.6 3.1 3.5 3.9 4.4 4.7
length Power [kW]

Model NumberA□P-S□□ L□□ V□□ – △△/○○

  • AInduction motors
  • □PNumber of poles
  • S□□Outer diameter of the stator
  • L□□Laminated length
  • V□□Rated speed
  • △△CU or AL (materials of rotor sconductors)
  • ○○LD(Insulation varnish) or HD(Resin Impregnation)
  • CUThe bars and end-rings in the rotor are made from copper to ensure high motor efficiency. This also allows for decreased vibrations from rotation as the shaft is thicker than those used in aluminum rotors.
  • ALThe bars and end-rings in the rotor are made from aluminum which provides an excellent balance between price and performance.
  • LDThis stator is dipped into the insulation vanish. It is our most common model which is suitable to general spindle motors.
  • HDThis copper coil of the stator is filled with special resin which helps to decrease the temperature of coils.
