A8P-S180

product_inner04

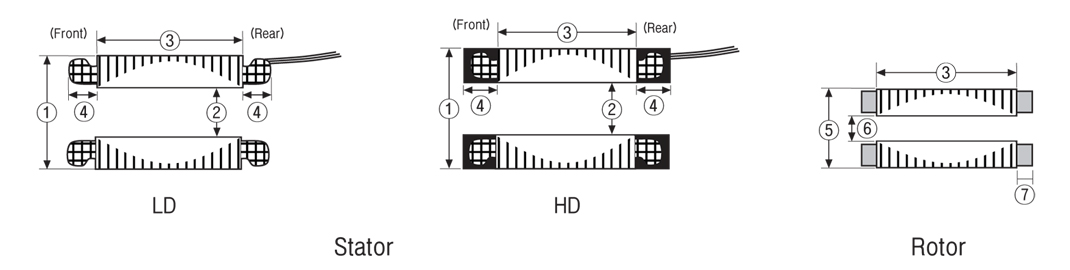

Notes of Dimensions

product_inner02_

※On mobile, you can check the contents by dragging left and right.

A8P-S180
1. Outer dia. of the stator 180
2. Inner dia. of the stator 130
3. Laminated length of the stator 100~300
Front/Rear F R
4. Height of the end-winding Ld 30 40
Hd 30 40
5. Outer dia. of the rotor 129
6. Inner dia. of the rotor/max. CU 80/90
AL -
7. Width of the-ring 5

A8P-S180

※On mobile, you can check the contents by dragging left and right.

CU(AL)/LD(HD) V1.5
1.5krpm
100Hz		 V2.0
2krpm
133Hz		 V2.5
2.5krpm
167Hz		 V3.0
3krpm
200Hz		 V3.5
3.5krpm
233Hz		 V4.0
4krpm
267Hz		 V5.0
5krpm
333Hz		 Speed
L100 (100mm) 5 9 12 16 20 21 22 Power
[kW]
L180 (180mm) 11 17 23 29 35 37 39
L260 (260mm) 15 25 35 42 51 59 66
L330 (330mm) 18 32 42 54 65 68 72
Laminated
length 		Power [kW]

Model NumberA□P-S□□ L□□ V□□ – △△/○○

  • AInduction motors
  • □PNumber of poles
  • S□□Outer diameter of the stator
  • L□□Laminated length
  • V□□Rated speed
  • △△CU or AL (materials of rotor sconductors)
  • ○○LD(Insulation varnish) or HD(Resin Impregnation)
  • CU

    The bars and end-rings in the rotor are made from copper to ensure high motor efficiency. This also allows for decreased vibrations from rotation as the shaft is thicker than those used in aluminum rotors.

  • AL

    The bars and end-rings in the rotor are made from aluminum which provides an excellent balance between price and performance.

  • LD

    This stator is dipped into the insulation vanish. It is our most common model which is suitable to general spindle motors.

  • HD

    This copper coil of the stator is filled with special resin which helps to decrease the temperature of coils.
